Product Description

• Specifications
• Model: VCF-56A
• Max. Power: 36W
• Max. Speed: 380 RPM
• Airflow: 270CMM
• Working Voltage: DC6-24V
• Rating Voltage: DC12V
• Motor Diameter: Φ220mm
• Motor Type: Three Phases DC Brushless Motor
• Motor Life: 10+ Years
• Warranty: 2 Years
• Blade: 56 Inches Metal Blades
• Operation Mode: AC&DC Operated
• Directly Fit for Solar Panel and Battery
• White Powder Spraying and Metal Housing
• Speed Control: Five Levels Remote Control
• Control Types: IR Remote Control & Wall Control&Rotary Stepless Switch
•
• Packing Details
• N.W./G.W.: 15.0/16.0kgs
• Carton Size: 720*370*230mm, 3pcs/ctn
• Loading QTY.: 1446pcs/20'GP, 3006pcs/40'GP, 3408pcs/40'HQ
•

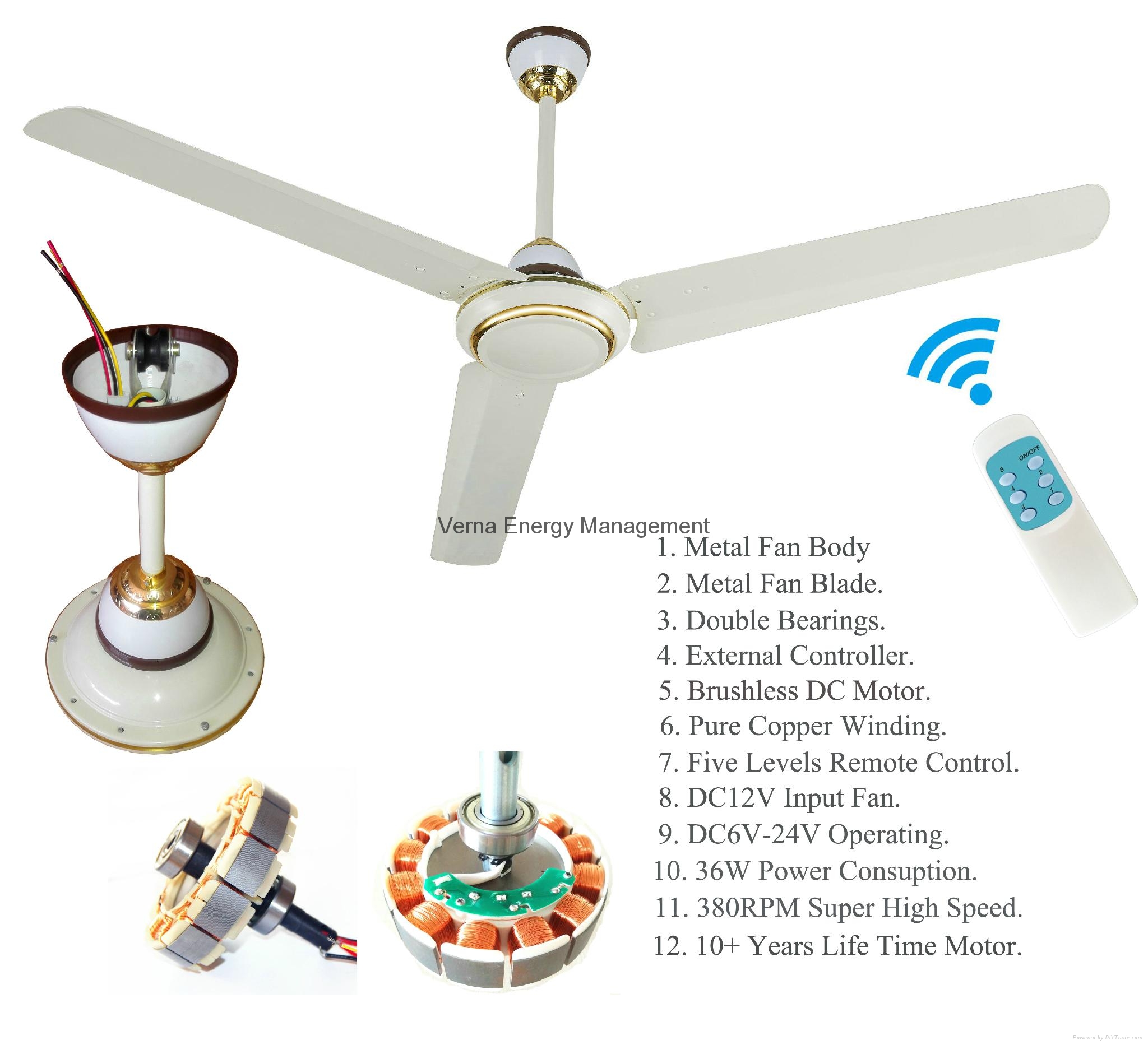

• Product Advantages
• Pure copper & Electronics controlled DC brushless motor, new technology motor.
• High efficiency, high speed and strong CFM as normal AC fan
• Saving 50% energy than AC Ceiling Fan, only 36W maximum power consumption.
• Multiple operation modes, can be directly operated by solar panel, 12V battery and AC adapter.
• Best for solar systems, especially for the places where lack of electricity power.

Payment Terms︰ FOB Shenzhen/Guangzhou/Shunde/Jiangmen

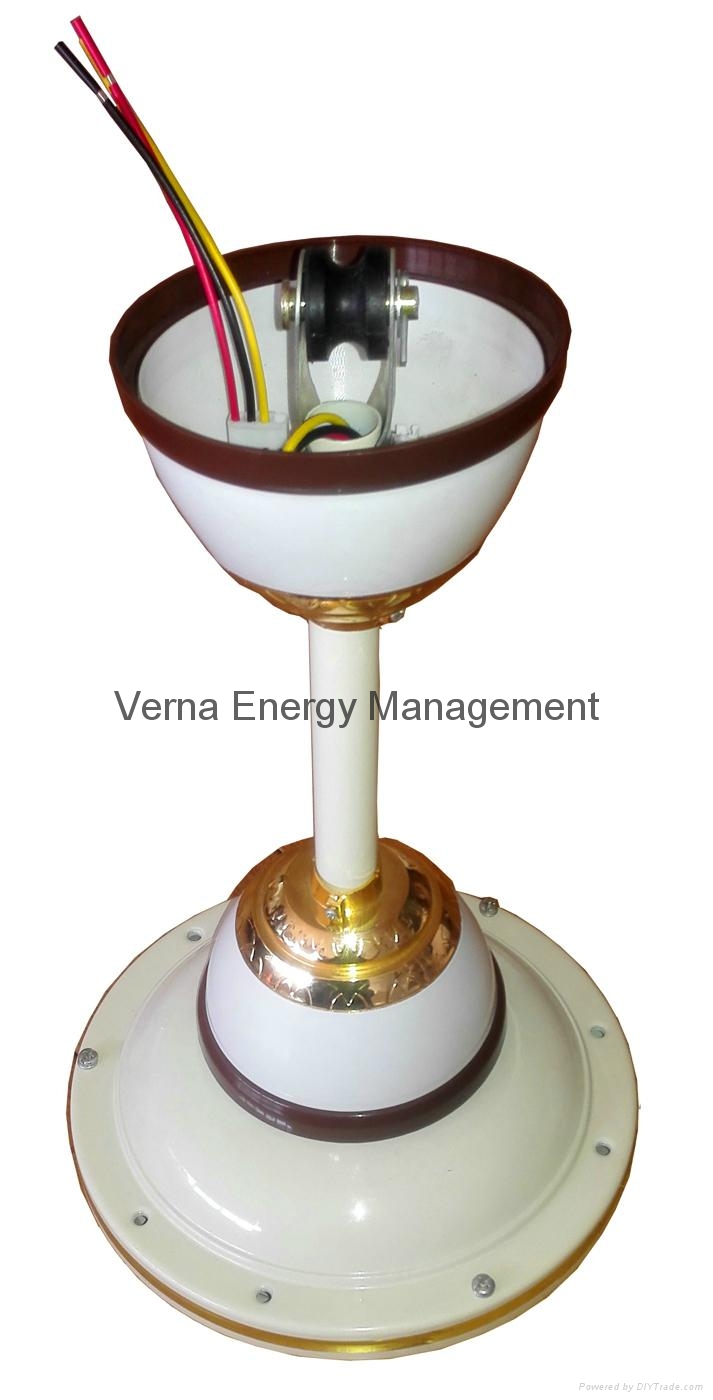

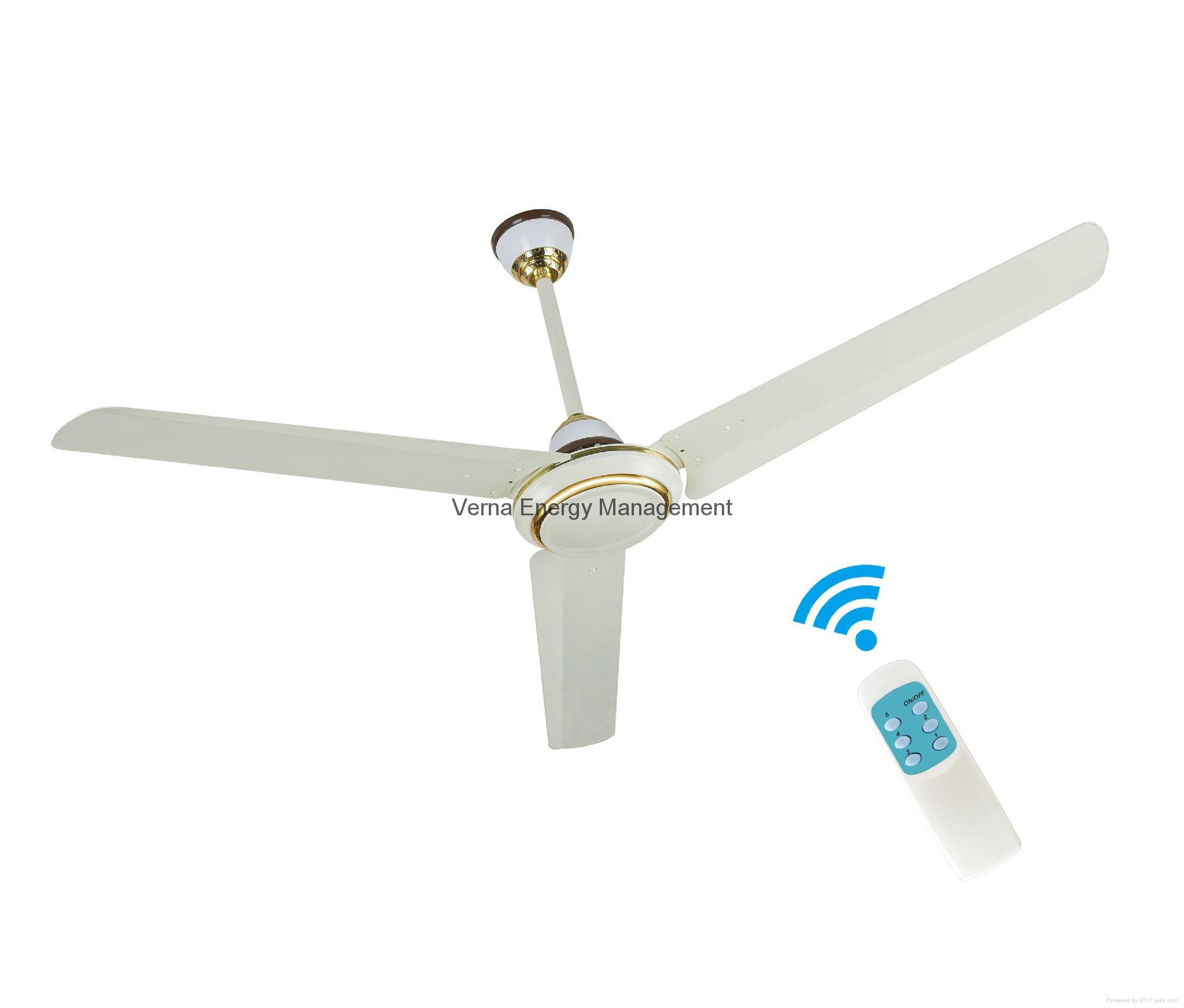

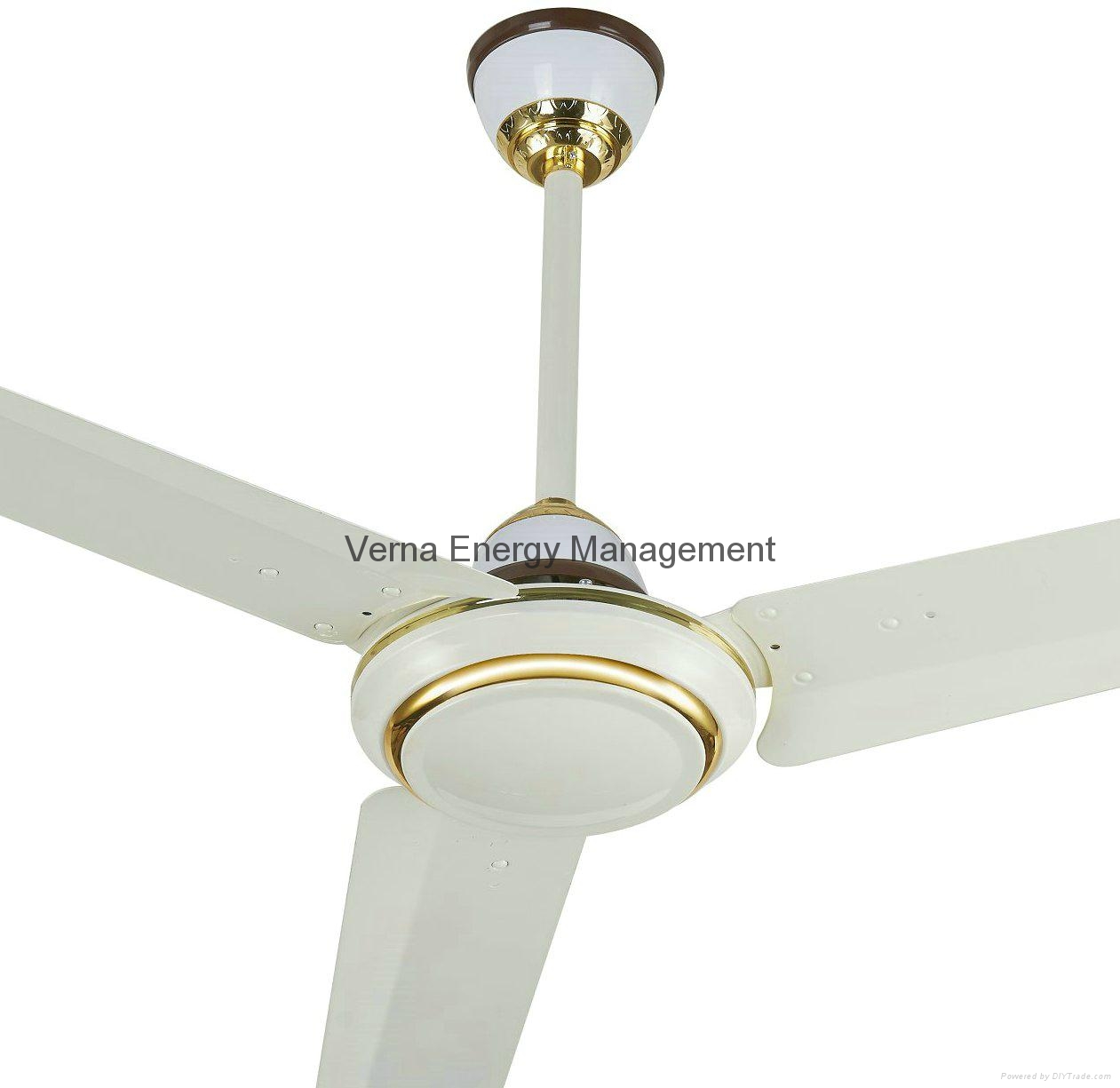

Product Image
